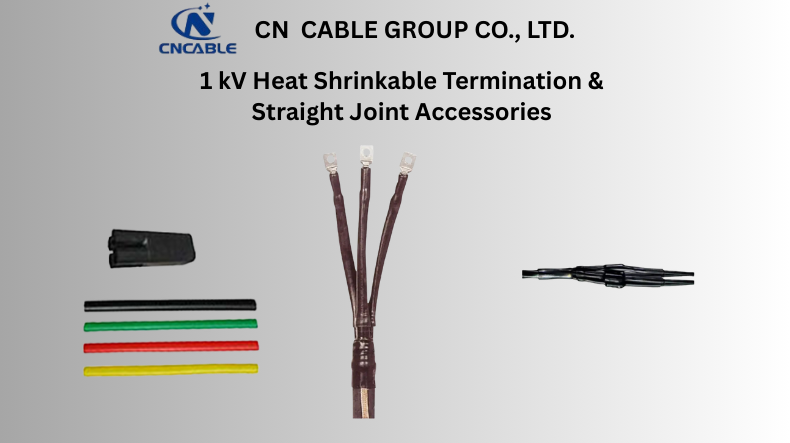

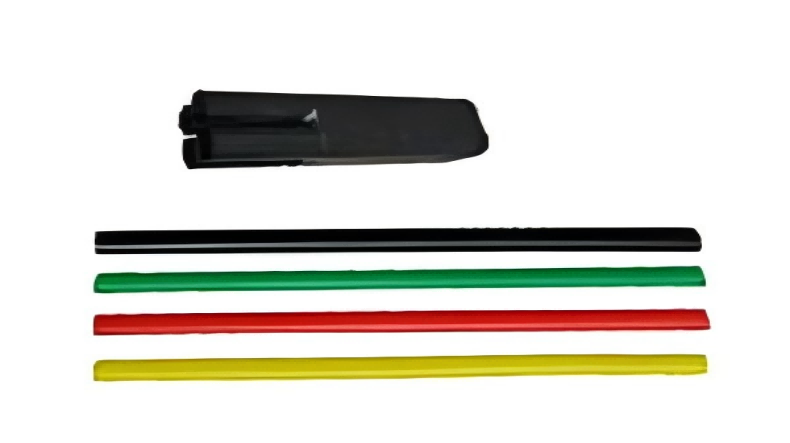

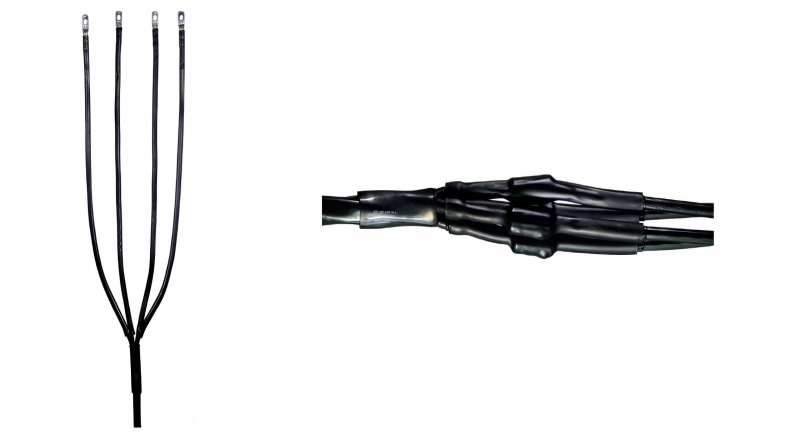

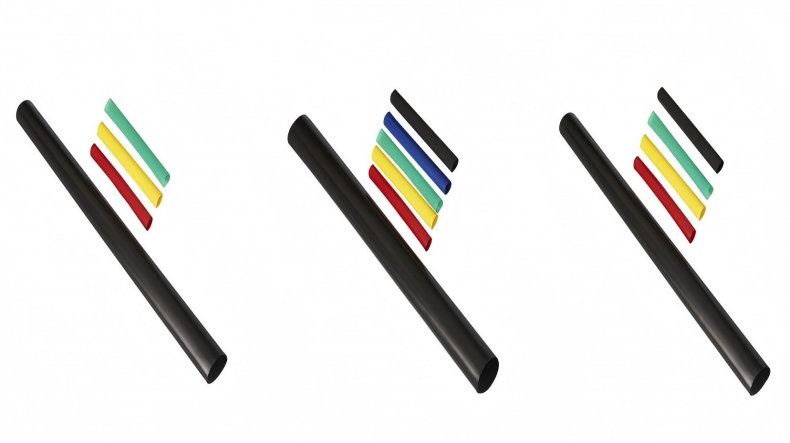

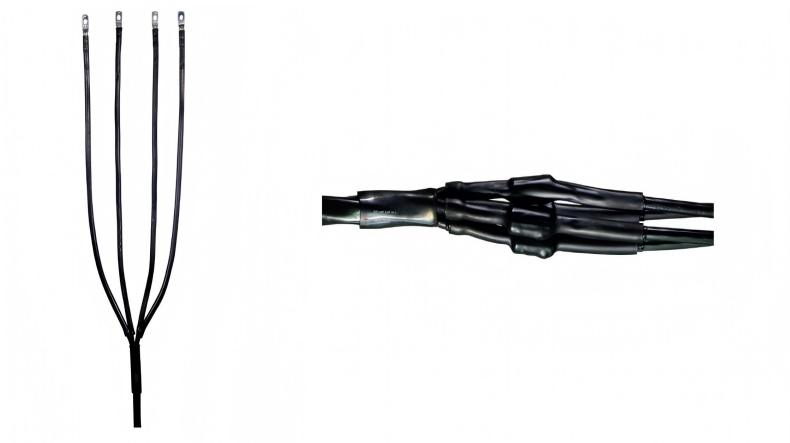

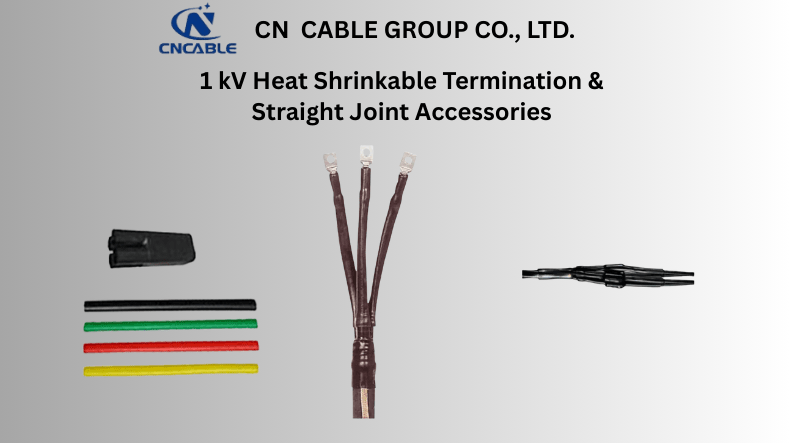

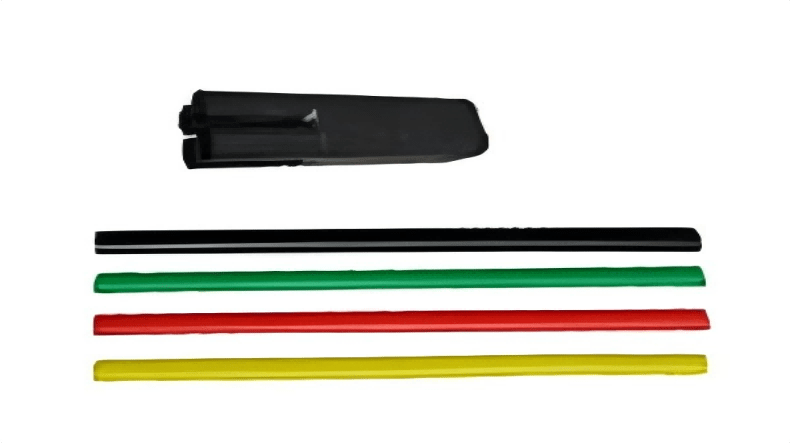

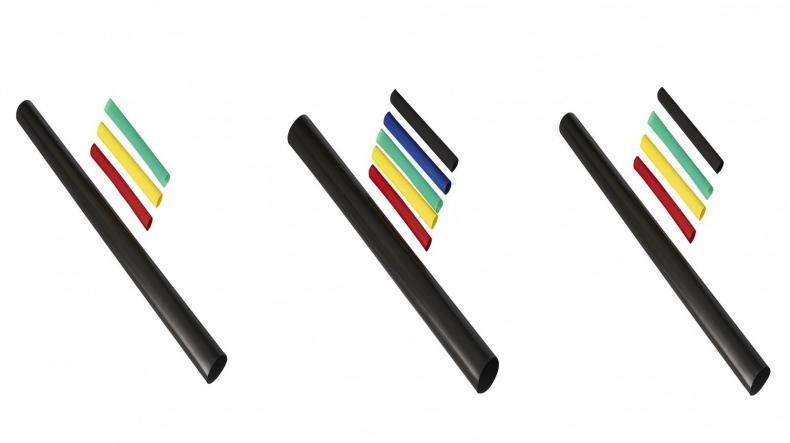

The 1 kV heat shrinkable terminations and straight joint kits are engineered for 0.6/1.0(1.2) kV polymeric insulated cables, suitable for PVC, XLPE, and PE insulation. These accessories ensure safe and durable connections for low-voltage power distribution networks.
Description: The 1 kV heat shrinkable terminations and straight joint kits are engineered for 0.6/1.0(1.2) kV polymeric insulated cables, suitable for PVC, XLPE, and PE insulation. These accessories ensure safe and durable connections for low-voltage power distribution networks.
Rated Voltage: 0.6/1kV;
The cross section of the cable shall apply: 10~240mm2;
Application: suitable for PVC, XLPE, and PE insulation. These accessories ensure safe and durable connections for low-voltage power distribution networks.
| Test Item | Test Conditions | Requirement |
| Power Frequency Withstand Voltage (1 min) | Applied voltage: 4 kV | No flashover, no breakdown |
| Heating Cycles in Air | 1.5 kV applied; each cycle ≥ 8 h: heating at 95–100 °C (≥ 2 h) + natural cooling (≥ 3 h); total 60 cycles | No failure during test |
| Power Frequency Withstand Voltage (4 h) | Applied voltage: 2.4 kV | No flashover, no breakdown |
Main Advantages:
Space-saving structure, simple to install
Applicable to a broad range of conductor sizes
High resistance against rust and chemical corrosion
Strong protection against UV radiation and outdoor weathering
Free from halogen materials, enhancing environmental safety
Excellent sealing capability, preventing moisture ingress
Reliable electrical insulation combined with robust mechanical strength
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
