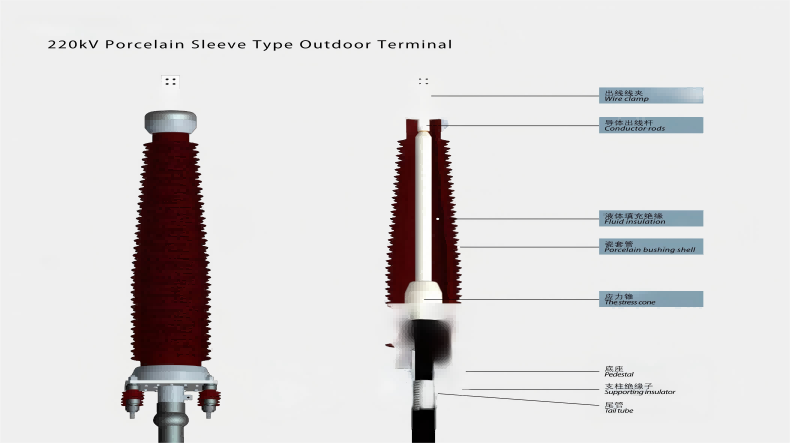

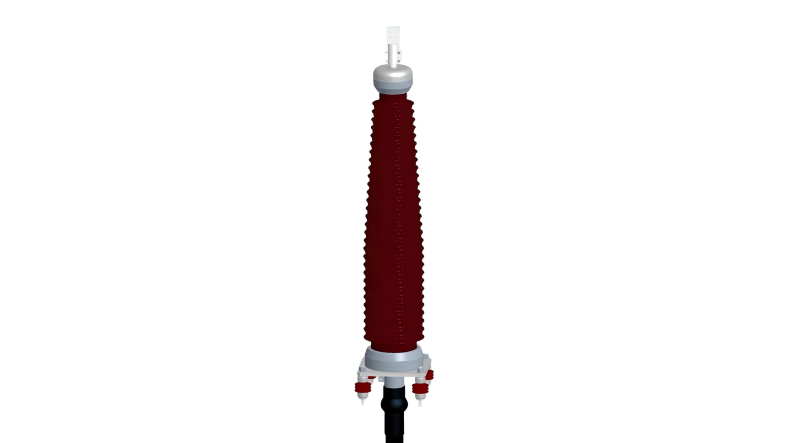

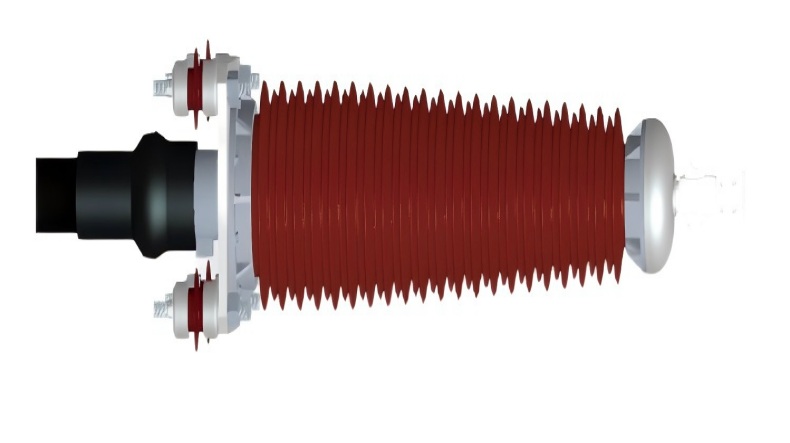

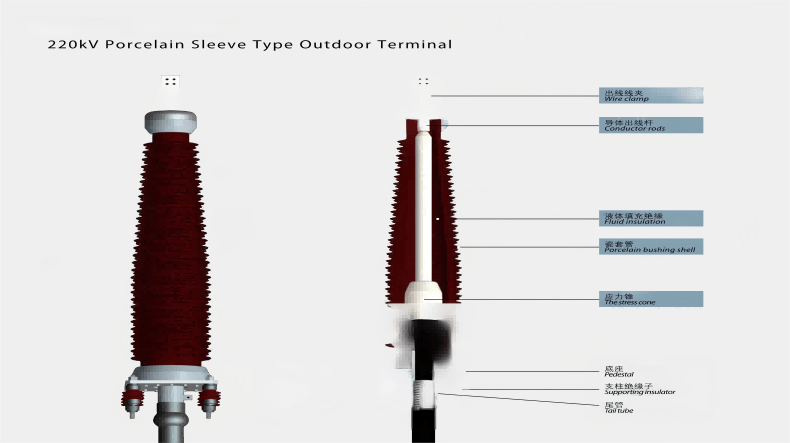

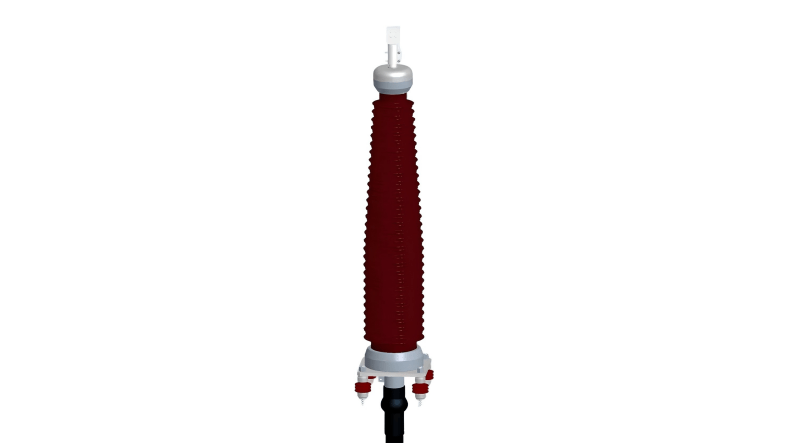

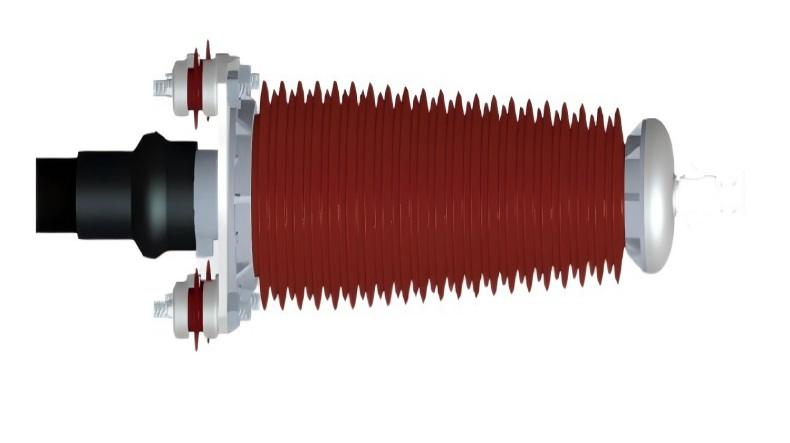

220kV Outdoor Terminal is a high-voltage cable termination used in outdoor power transmission and distribution systems.
Description: 220kV Outdoor Terminal is a high-voltage cable termination used in outdoor power transmission and distribution systems.
Rated Voltage: 220kV;
The cross section of the cable shall apply: 50 ~ 630 mm2;
Environment temperature: -40℃~+40℃;
Application: 220kV Composite Shell Outdoor Terminal serves as a termination point for high-voltage cables, providing electrical insulation, mechanical protection, and environmental resistance.

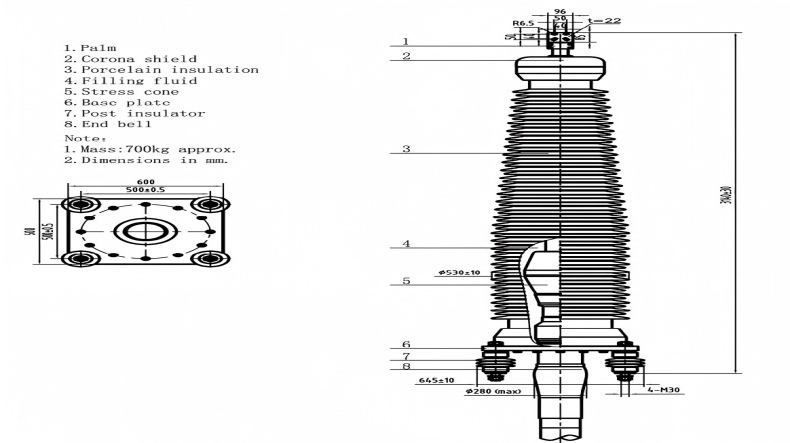

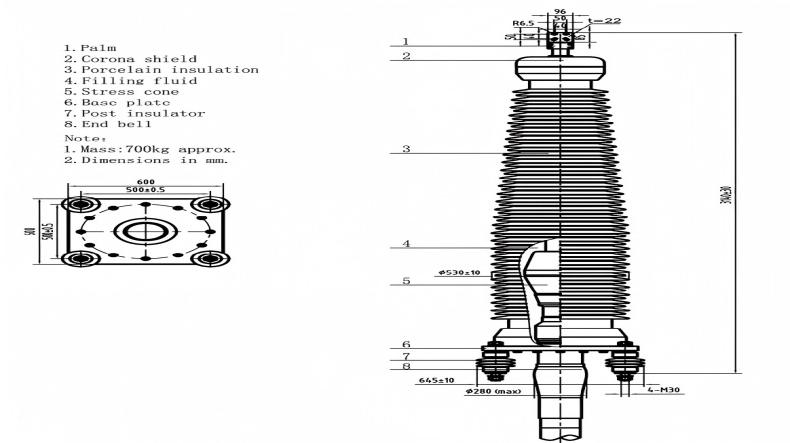

| Technical Specifications | |
| Category | Item |
| Operating Conditions | Max. System Voltage |
| Rated Frequency | 50 Hz |
| Altitude | ≤ 2000 m |
| Operating Temperature | -55°C ~ +45°C |
| Storage Temperature | 0°C ~ +35°C |
| Installation Temperature | 5°C ~ +35°C |
| Cable Shield Types | Tape / Wire / Corrugated Aluminum |
| Design Data | Overall Height |
| Weight (Excl. Cable) | 550 kg / 1212.54 lbs |
| Creepage Distance | ≥ 8300 mm |
| Bending Moment Resistance | ≥ 5000 kN |
| Horizontal Tensile Strength of Connecting Wire | ≥ 2 kN |
| Internal Withstand Pressure | 2.4 MPa |
| Breakdown Pressure | 3.5 MPa |
| Filling Fluid | PIB / Gel |
| Electrical Performance | Type Test (IEC 62067) |
| Heating Cycle Withstand Voltage | 254 kV |
| Partial Discharge @ 191 kV | ≤ 3.8 pC (no detectable discharge at ambient & elevated temperatures) |
| Lightning Impulse Withstand Voltage | ±1050 kV |
| Routine Test (IEC 62067) | |
| AC Withstand Voltage (wet, 1 min) | 460 kV |
