18/35kV Outdoor Terminal serves as a termination point for medium and high voltage XLPE-insulated cables, providing electrical insulation, mechanical protection, and environmental resistance.

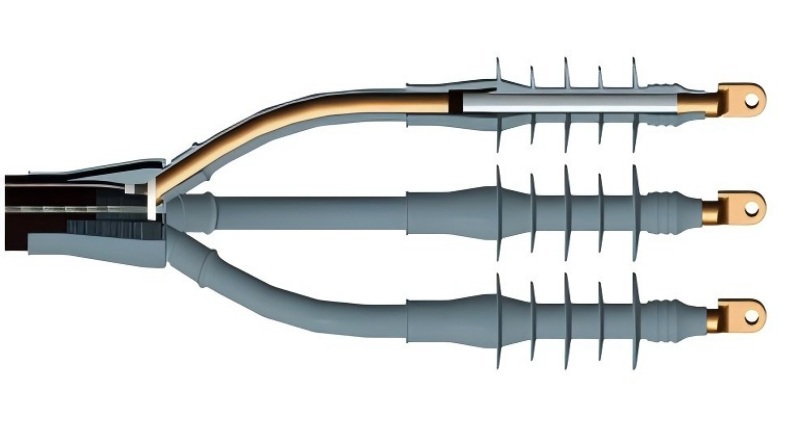

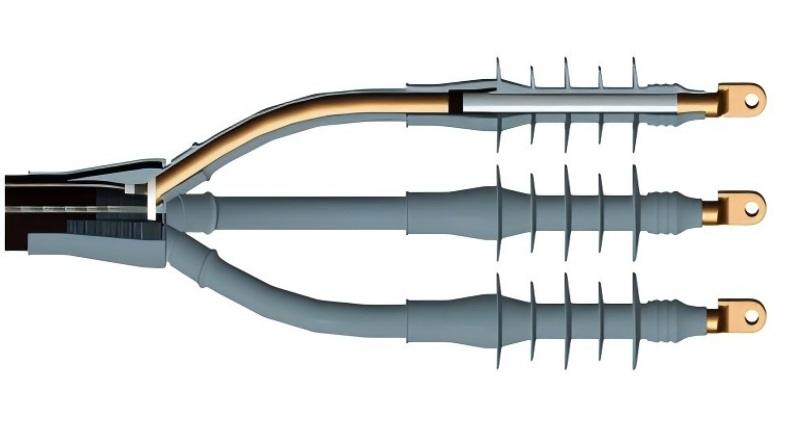

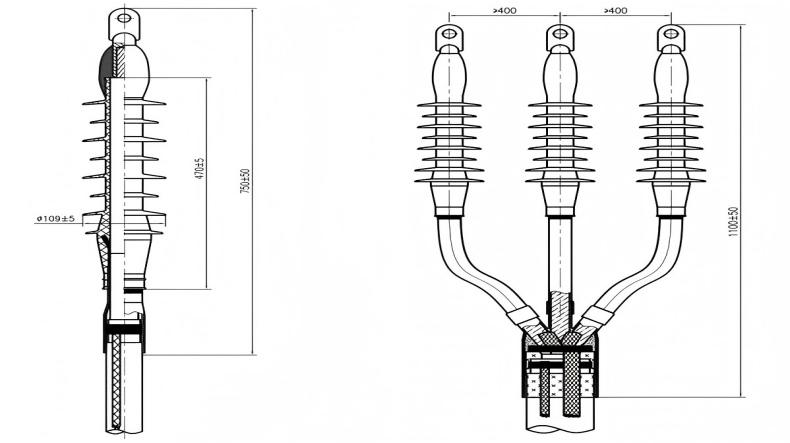

Description: The 18/30kV Cold-Shrink Outdoor Cable Termination is specifically designed for medium and high voltage XLPE-insulated cables. Manufactured with high-grade liquid silicone rubber, it is ideal for demanding installation environments.
Rated Voltage: 18/35kV;
The cross section of the cable shall apply: 50 – 630 mm²;
Application: 18/35kV Outdoor Terminal serves as a termination point for medium and high voltage XLPE-insulated cables, providing electrical insulation, mechanical protection, and environmental resistance.
| Parameter | Value |
| Rated Voltage | 18/30kV (Max System Voltage: 40.5kV) |
| Frequency | 50Hz |
| Applicable Cable Cross-section | 50 – 630 mm² |
| Cable Type | XLPE insulation, corrugated aluminum sheath, wire shield |
| Number of Cores | Single-core / Three-core |
| Insulator Material | Liquid Silicone Rubber |
| Installation Method | Angled allowed, upside-down not allowed |
| Minimum Creepage Distance | ≥ 400mm (from skirt to end and ground) |
| Grounding Options | Tinned copper braid or copper wire |
| Terminal Type | Compression lug or shear bolt |
| Altitude Suitability | ≤ 2000m |
| Operating Temperature | -55°C to +45°C |
| Storage Temperature | 0°C to 35°C |
| Installation Temperature | 5°C to 35°C |

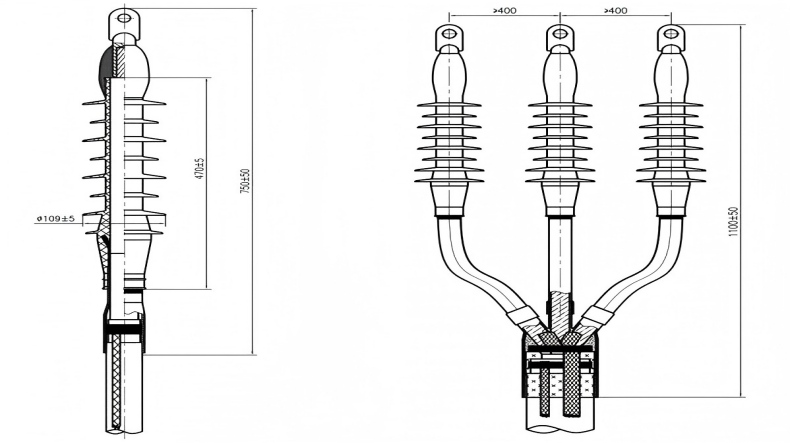

| Product Height | 1010mm |
| Creepage Distance | 1260mm |
| Weight | 2.8 ~ 3.7kg |
| Test Item | Test Value |
| AC Voltage (dry, 5 mins) | 117kV |
| AC Voltage (wet, 1 min) | 104kV |
| Partial Discharge (at ambient & elevated) | 45kV ≤ 2.8pC |
| Impulse Voltage (±10 pulses, 95~100°C) | 200kV |
| AC Voltage After Impulse (15 mins) | 65kV |
| Humidity Endurance Test (300 hrs) | 32.5kV |
| Salt Fog Test (1000 hrs) | 32.5kV |
