8/15 kV Cold Shrinkable Outdoor Termination are suitable for high altitude, cold, smoke and heavy pollution areas. Especially in flammable and explosive
industries such as petroleum, chemical industry and mining.

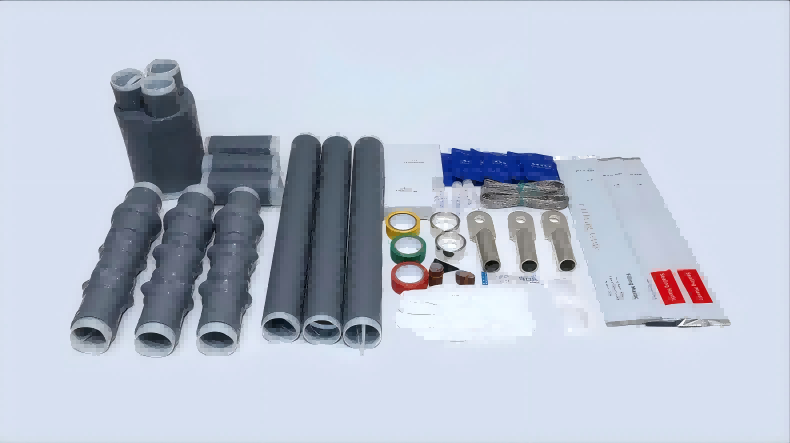

Description: Cold Shrink Outdoor Termination (8/15 kV) is designed for medium voltage power cable systems and offers outstanding electrical and environmental performance.
Made from specially formulated liquid silicone rubber, the component delivers dependable insulation and mechanical integrity even in extreme outdoor conditions.

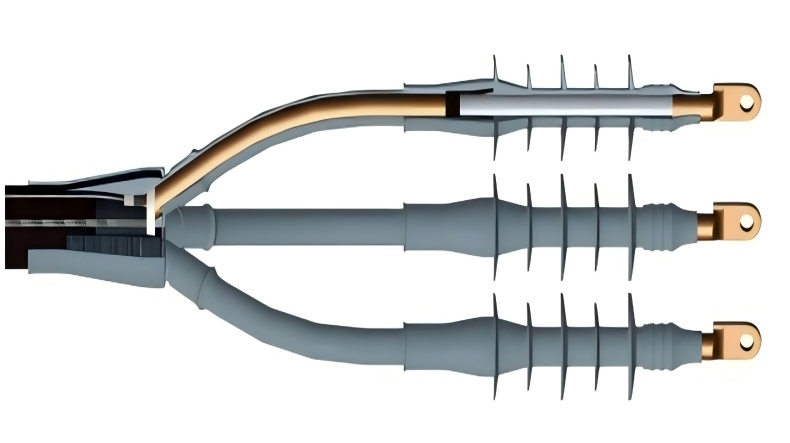

The termination body is pre-expanded on a removable plastic core, allowing it to shrink in place onto the cable without requiring heat or specialized tools. This cold application process not only reduces installation time but also ensures a consistent seal and fit around the cable, improving long-term reliability.
Through the use of high-precision molding equipment, the rubber body is produced to a high standard—free of visual defects such as bubbles or scorching. The interface between the insulation layer and the semi-conductive shielding is completely integrated, eliminating any risk of detachment or cracking over time.
Maximum Operating Voltage: 17.5kV;
The cross section of the cable shall apply: 25 mm
² –630 mm²;
Operating Temperature Range -55 ℃ to +45 ℃
Installation Temperature Range +5 ℃ to +35 ℃
Storage Temperature Range 0 ℃ to +35 ℃
| Feature | Value |
| Applicable Cable Size | 25 mm² – 630 mm² |
| Maximum Operating Voltage | 17.5 kV |
| Rated Frequency | 50 Hz |
| Altitude Limit | Up to 2000 meters |
| Operating Temperature Range | -55 ℃ to +45 ℃ |
| Installation Temperature Range | +5 ℃ to +35 ℃ |
| Storage Temperature Range | 0 ℃ to +35 ℃ |
| Core Types | Single-core / Three-core |
| Cable Shield Compatibility | Wire shield / Tape shield |
| Sheath Type | Compatible with corrugated aluminum |
| Insulator Material | Liquid Silicone Rubber |
| Housing Height | 900 mm |
| Creepage Distance | 545 mm |
| Weight of Insulation Body | 0.7 – 1.2 kg |
| Earthing Options | Tinned copper braid / Copper wire |
| Connector Type | Compression or shear bolt |
| Standards Compliance | GB/T 12706.4, IEC 60502 |
| Test Item | Test Value / Condition |
| AC Withstand Test (5 minutes) | 39 kV |
| Wet AC Withstand (1 minute) | 35 kV |
| Partial Discharge (ambient & high temp) | ≤ 2.8 pC @ 15 kV |
| Lightning Impulse Test (95–100°C) | 95 kV (10 impulses per polarity) |
| Post-Impulse AC Voltage (15 minutes) | 22 kV |
| Humidity Endurance | 11 kV for 300 hours |
| Salt Fog Resistance | 11 kV for 1000 hours |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
