0.6/1kV wind box transformer cable. XLPE insulation, 90°C continuous/250°C short-circuit. Class 2 Cu/Al, -40°C to +90°C. Direct burial/duct/tray.

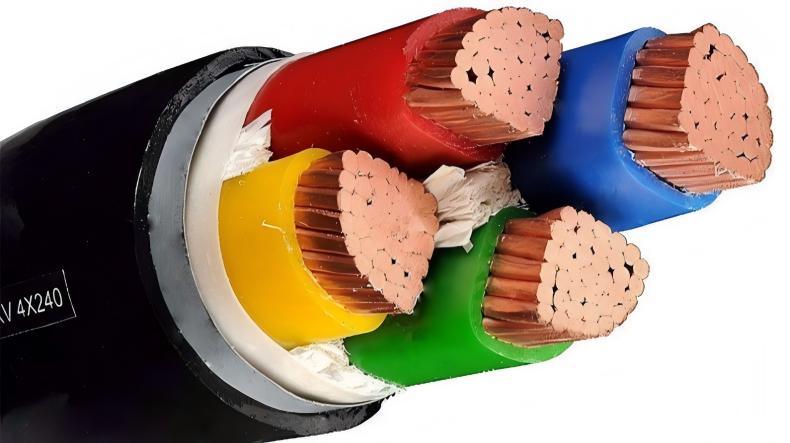

Description: 0.6/1kV Wind Turbine Box Transformer Cable is a low-voltage armored power cable designed for wind turbine unit box transformer connections, from tower base to pad-mounted or substation transformers. It features a Class 2 stranded copper or aluminum conductor, XLPE insulation, galvanized steel wire/tape armor, and a PVC ST2 outer sheath, ensuring mechanical protection, thermal overload capacity, and durability for direct burial, duct, or cable tray installations in onshore wind farms.
Voltage Rating: 0.6/1kV;
Temperature Rating: Operating: -40°C to +90°C;
Construction:
Conductor:Class 2 annealed copper or Aluminum conductor
Insulation:XLPE cross-linked polyethylene
Outer sheath:PVC polyvinyl chloride
Standard: GB/T 12706.1-2020,IEC 60502.1-2021,IEC 60228-2023;
Application: 0.6/1kV Wind Turbine Box Transformer Cable can be used in wind farm step-up transformer connections, tower base to pad-mounted transformers, substation feeders, and auxiliary power distribution. Applied in conditions requiring mechanical protection and thermal overload capacity, suitable for direct burial, cable duct, or cable tray installations.
| Core numberxConductor
cross-sectional area mm² |
Insulation nominal
thickness mm |
Sheath nominal
thickness mm |
Outer diameter
of the cable mm |
Current carrying capacity
in soil A |
| 3×95 | 1.1 | 2.2 | 38.2 | 300 |
| 3×120 | 1.2 | 2.3 | 41.5 | 345 |
| 3×150 | 1.4 | 2.4 | 46.0 | 385 |
| 3×185 | 1.6 | 2.6 | 50.7 | 435 |
| 3×240 | 1.7 | 2.7 | 56.9 | 5000 |
| 3×300 | 1.8 | 2.9 | 62.7 | 565 |
| 3×400 | 2.0 | 3.2 | 69.5 | 640 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
