H1Z2Z2-K solar cable. 1.5kV DC (max 1.8kV), -40°C to +120°C, 250°C/5s short-circuit. Tinned copper, XLPO LSHF. Bending 5D. Up to 240mm².
Description:H1Z2Z2-K Photovoltaic Cable is a next-generation solar DC cable designed for high-power photovoltaic systems, including panel interconnections, string combiner boxes, and inverter connections. It features a Class 5 tinned annealed stranded copper conductor and XLPO electron-beam cross-linked halogen-free low-smoke insulation and sheath, offering a maximum DC voltage of 1.8kV, exceptional UV/ozone/acid/alkali resistance, and cross-sections up to 240mm² for large-scale ground-mounted solar plants.
Temperature Rating: Operating: -40°C to +90°C;
The maximum operating temperature:120℃
Construction:
Conductor:Class 5 tinned annealed stranded copper conductor
Insulation:XLPO low smoke halogen-free electron-beam cross-linked compounds
Outer sheath:XLPO low smoke halogen-free electron-beam cross-linked compounds
Standard: EN 50618,EN 60228,EN 60811-2-1,EN 60811-1-4,HD 605/A1,IEC 60332-1-2,EN 50395,EN 50396;
Application: H1Z2Z2-K Photovoltaic Cable can be used in high-power photovoltaic systems, including solar panel arrays, string combiner boxes, inverter connections, and large-scale ground-mounted solar plants. Applied in conditions requiring higher ampacity, longer string lengths, and excellent weather resistance for both commercial and utility-scale PV projects.

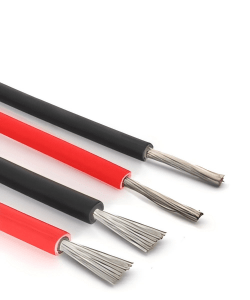

Single Core H1Z2Z2-K
| Cross section
area |
Approx.
conductor OD. |
Approx.
Cable OD. |
Approx.
Cable wight |
Max.Conductor DC Resistance @20℃ | Current Carrying
Capacity at 60℃ (single cable in air) |
| mm2 | mm | mm | Kg/km | Ω/km | A |
| 1.5 | 1.60 | 4.8 | 35 | 13.7 | 30 |
| 2.5 | 2.02 | 5.2 | 47 | 8.21 | 41 |
| 4 | 2.40 | 5.6 | 60 | 5.09 | 55 |
| 6 | 3.00 | 6.3 | 81 | 3.39 | 70 |
| 10 | 4.10 | 7.4 | 127 | 1.95 | 98 |
| 16 | 5.50 | 9.1 | 194 | 1.24 | 132 |
| 25 | 6.70 | 10.9 | 297 | 0.795 | 176 |
| 35 | 8.20 | 12.7 | 405 | 0.565 | 218 |
| 50 | 10.00 | 14.9 | 568 | 0.393 | 276 |
| 70 | 11.60 | 16.7 | 769 | 0.277 | 347 |
| 95 | 13.00 | 18.4 | 1014 | 0.21 | 416 |
| 120 | 14.40 | 20.0 | 1260 | 0.164 | 488 |
| 150 | 16.20 | 22.5 | 1576 | 0.132 | 566 |
| 185 | 18.20 | 25.4 | 1957 | 0.108 | 644 |
| 240 | 20.60 | 28.7 | 2531 | 0.0817 | 775 |
Twin Cable H1Z2Z2-K
| No.
Cores&Cross section area |
Approx.
conductor OD. |
Approx.
Cable OD. |
Approx.
Cable wight |
Max.Conductor DC Resistance @20℃ | Current Carrying Capacity at 60℃ |
| mm2 | mm | mm | Kg/km | Ω/km | A |
| 2×4 | 2.59 | 5.7×11.7 | 124 | 5.09 | 44 |
| 2×6 | 3.17 | 6.4×13.1 | 169 | 3.39 | 57 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
