PV1-F solar cable withstands -40°C to +120°C, UV/ozone/acid/alkali. Tinned copper, XLPO, halogen-free LSHF. 1.5kV DC, 25-year life.
Description: PV1-F Photovoltaic Cable is a solar DC cable designed for photovoltaic system DC side connections, including panel-to-panel interconnections, string-to-inverter wiring, and DC combiner box connections. It features a Class 5 tinned annealed stranded copper conductor and XLPO electron-beam cross-linked halogen-free insulation and sheath, delivering exceptional resistance to UV, ozone, acid, alkali, and extreme temperatures ranging from -40°C to +120°C for over 25 years of service life.
Temperature Rating: Operating: -40°C to +90°C;
The maximum operating temperature:120℃
Construction:
Conductor:Class 5 tinned annealed stranded copper conductor
Insulation:XLPO low smoke halogen-free electron-beam cross-inked compounds
Outer sheath:XLPO low smoke halogen-free electron-beam cross-linked compounds
Standard: EN 60228,EN 60811-2-1,EN 60811-1-4,HD 605/A1,IEC 60332-1-2,EN 50395,EN 50396;
Application: PV1-F Photovoltaic Cable can be used in photovoltaic system DC side connections, including solar panel arrays, panel-to-panel interconnections, string-to-inverter wiring, DC combiner boxes, and junction boxes. Applied in conditions requiring extreme UV resistance, high temperature tolerance, and long-term outdoor durability for over 25 years of service life.

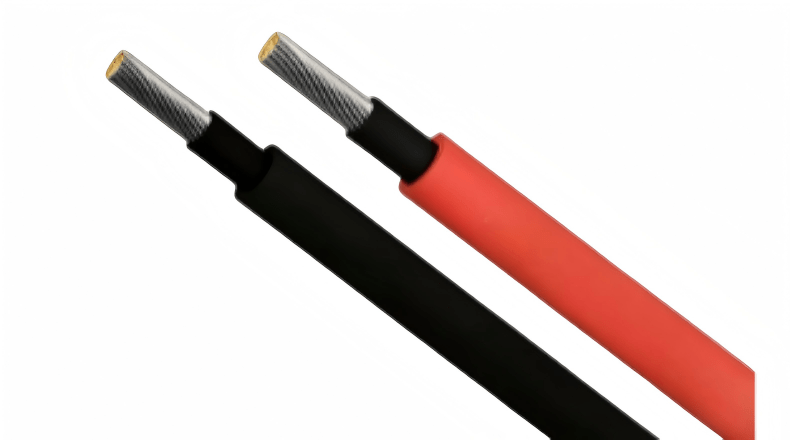

Single Core PV1-F
| Cross section
area |
Approx.
conductor OD. |
Approx.
Cable OD. |
Approx.
Cable wight |
Max.Conductor
DC Resistance @20℃ |
Current Carrying Capacity
at 60℃ (single cable in air) |
| mm2 | mm | mm | Kg/km | Ω/km | A |
| 1.5 | 1.60 | 4.6 | 31 | 13.7 | 30 |
| 2.5 | 2.02 | 5.1 | 42 | 8.21 | 41 |
| 4 | 2.59 | 5.9 | 61 | 5.09 | 55 |
| 6 | 3.17 | 6.6 | 83 | 3.39 | 70 |
| 10 | 4.10 | 7.6 | 125 | 195 | 98 |
| 16 | 5.50 | 9.2 | 188 | 1.24 | 132 |
| 25 | 6.70 | 10.6 | 280 | 0.795 | 176 |
| 35 | 8.20 | 12.2 | 380 | 0.565 | 218 |
Twin Cable PV1-F
| Cross section
area |
Approx.
conductor OD. |
Approx.
Cable OD. |
Approx.
Cable wight |
Max.Conductor
DC Resistance @20℃ |
Current Carrying Capacity
at 60℃ |
| mm2 | mm | mm | Kg/km | Ω/km | A |
| 2×4 | 2.59 | 5.7×11.7 | 124 | 5.09 | 44 |
| 2×6 | 3.17 | 6.4×13.1 | 169 | 3.39 | 57 |
