Aluminum alloy wind cable cuts 50% tower weight. Class 2 conductor, butyl rubber, CSM sheath. -40°C to +90°C. Salt spray/oil/UV/ozone resistant.

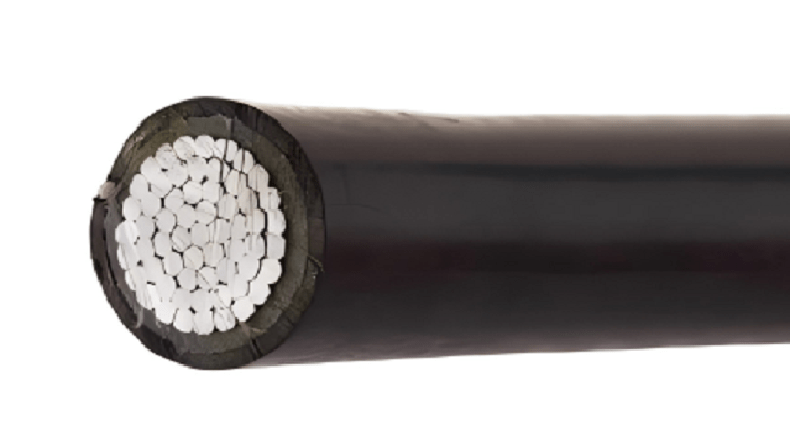

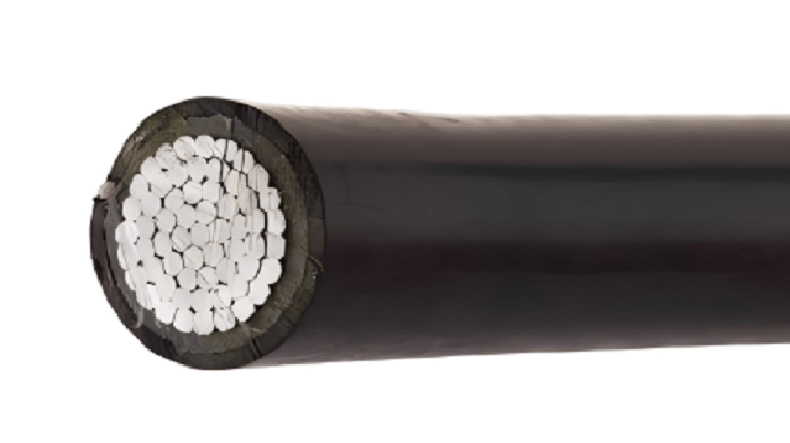

Description: 1.8/3kV Wind Power Aluminum Alloy Cable is a medium-voltage power cable designed for wind farm collector systems, tower internal wiring, and auxiliary power distribution where weight reduction is critical. It features a Class 2 stranded aluminum alloy conductor, butyl rubber insulation, and a CSM outer sheath, offering approximately 50% weight savings compared to copper alternatives while maintaining reliable performance in extreme low-temperature and harsh weather conditions.
Voltage Rating: 1.8/3kV;
Temperature Rating: Operating: -40°C to +90°C;
Construction:
Conductor:Class 2 Aluminum alloy conductor
Insulation:Butyl rubber or other equivalent synthetic elastomers
Outer sheath:Chlorosulfonated polyethylene rubber mixtures or other equivalent synthetic elastomers
Standard: GB/T 29631-2013,IEC 60502.1-2021,IEC 60228-2023;
Application: 1.8/3kV Wind Power Aluminum Alloy Cable can be used in wind farm collector systems, tower internal wiring, auxiliary power distribution, and control circuits. Applied in conditions where weight reduction is critical to reduce tower structural load, and where cables require reliable performance in extreme low-temperature environments.
Table 1:0.6/1kV Aluminum alloy cable parameters
| Core numberx Conductor cross-sectional area
mm² |
Insulation nominal
thickness mm |
Sheath nominal
thickness mm |
Outer diameter
of the cable mm |
Environmental temperature
Current carrying capacity at 30℃ A |
| 1×120 | 1.6 | 1.6 | 20.0 | 300 |
| 1×150 | 1.8 | 1.6 | 21.0 | 340 |
| 1×185 | 2.0 | 1.7 | 24.5 | 390 |
| 1×240 | 2.2 | 1.8 | 27.0 | 470 |
| 1×300 | 2.4 | 1.8 | 29.0 | 540 |
| 1×340 | 2.4 | 2.0 | 31.0 | 560 |
| 1×400 | 2.6 | 2.0 | 32.5 | 660 |
Table 2:1.8/3kV Aluminum alloy cable parameters
| Core numberx Conductor
cross-sectional area mm² |
Insulation nominal
thickness mm |
Sheath nominal
thickness mm |
Outer diameter
of the cable mm |
Environmental temperature
Current carrying capacity at 30℃ A |
| 1×120 | 2.4 | 1.6 | 21.5 | 310 |
| 1×150 | 2.4 | 1.6 | 23.0 | 350 |
| 1×185 | 2.4 | 1.7 | 25.5 | 400 |
| 1×240 | 2.4 | 1.8 | 27.5 | 470 |
| 1×300 | 2.4 | 1.8 | 29.0 | 540 |
| 1×340 | 2.4 | 2.0 | 31.0 | 560 |
| 1×400 | 2.6 | 2.0 | 32.5 | 660 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
