MV wind cable passes 10,000 torsion cycles at -40°C. EPR/butyl insulation, CSM sheath. 3.6/6kV-26/35kV, single/triple core. Salt spray/UV/ozone resistant.

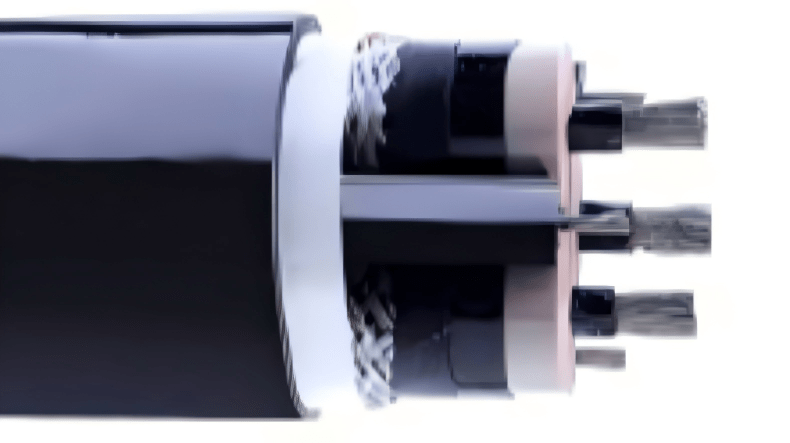

Description: 6kV-35kV Wind Power Twisted Resistant MV Cable is a medium-voltage power cable designed for wind farm collector systems, including turbine-to-turbine interconnections, turbine-to-substation feeders, and offshore wind farm array cables. It features a Class 5 annealed stranded copper conductor, EPR or butyl rubber insulation, and a CSM outer sheath, delivering exceptional torsional resistance and durability for continuous flexing in extreme marine and onshore wind environments.
Voltage Rating: 6/35kV;
Temperature Rating: Operating: -40°C to +90°C;

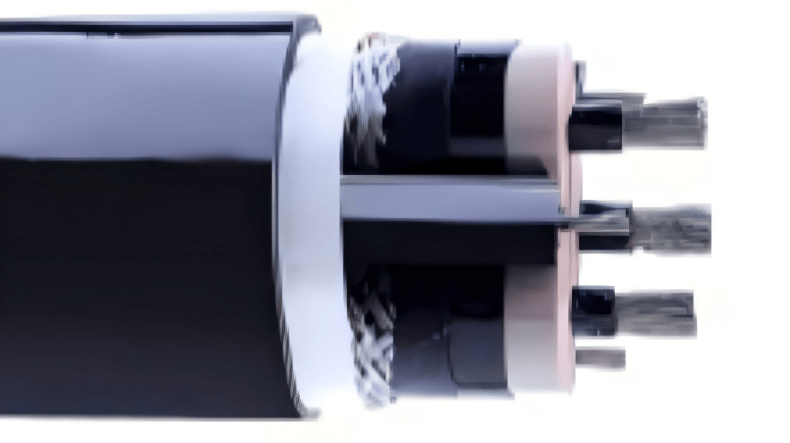

Construction:
Conductor:Class 5 annealed copper conductor
Insulation:Butyl rubber or other equivalent synthetic elastomers
Outer sheath:Chlorosulfonated polyethylene rubber mixtures or other equivalent synthetic elastomers
Standard: GB/T 33606-2017,IEC 60502.2-2021,IEC 60228-2023;
Application: 6kV-35kV Wind Power Twisted Resistant MV Cable can be used in wind farm medium-voltage collector systems, turbine-to-turbine interconnections, turbine-to-substation feeders, and offshore wind farm array cables. Applied in conditions requiring torsional resistance and durability for continuous flexing in marine and coastal environments.

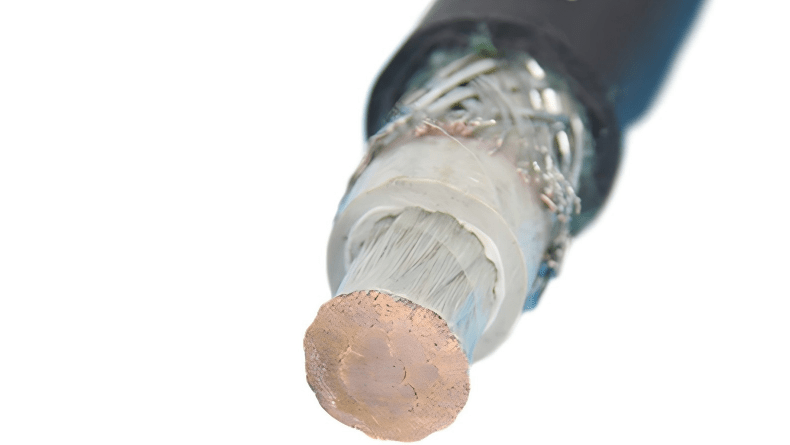

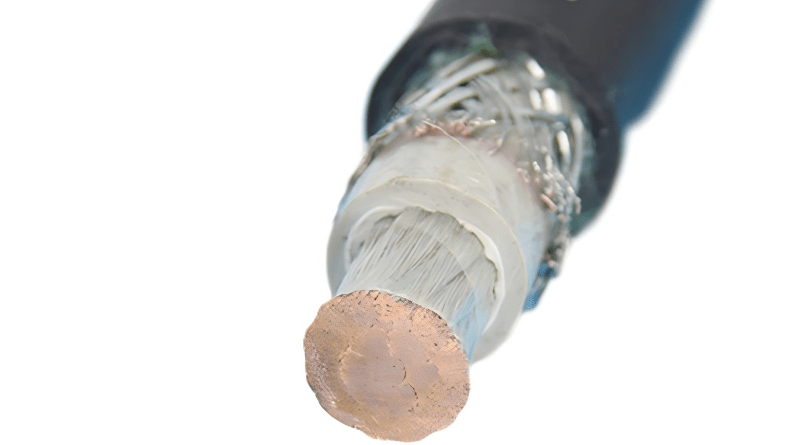

Table 1:Single-core cable parameters
| Rated voltage | Conductor
cross-sectional area mm² |
Insulation nominal
thickness mm |
Sheath nominal
thickness mm |
Outer diameter
of the cable mm |
Environmental
temperature Current carrying capacity at 30℃ A |
| 3.6/6 kV | 25 | 3.0 | 2.0 | 21.8 | 151 |
| 35 | 3.0 | 2.1 | 23.3 | 185 | |
| 50 | 3.0 | 2.2 | 24.7 | 224 | |
| 70 | 3.0 | 2.3 | 26.6 | 280 | |
| 95 | 3.0 | 2.4 | 28.6 | 342 | |
| 120 | 3.0 | 2.5 | 30.2 | 398 | |
| 150 | 3.0 | 2.6 | 31.9 | 454 | |
| 185 | 3.0 | 2.7 | 33.9 | 521 | |
| 240 | 3.0 | 2.9 | 37.2 | 616 | |
| 300 | 3.0 | 3.0 | 40.2 | 711 | |
| 6/10 kV | 25 | 3.4 | 2.1 | 23.8 | 151 |
| 35 | 3.4 | 2.2 | 25.3 | 185 | |
| 50 | 3.4 | 2.3 | 26.7 | 224 | |
| 70 | 3.4 | 2.4 | 28.6 | 280 | |
| 95 | 3.4 | 2.5 | 30.6 | 342 | |
| 120 | 3.4 | 2.6 | 32.2 | 398 | |
| 150 | 3.4 | 2.7 | 33.9 | 454 | |
| 185 | 3.4 | 2.8 | 35.9 | 521 | |
| 240 | 3.4 | 3.0 | 39.0 | 616 | |
| 300 | 3.4 | 3.1 | 41.6 | 711 | |
| 8.7/15 kV | 25 | 4.5 | 2.3 | 26.4 | 157 |
| 35 | 4.5 | 2.4 | 27.9 | 196 | |
| 50 | 4.5 | 2.5 | 29.3 | 230 | |
| 70 | 4.5 | 2.6 | 31.2 | 291 | |
| 95 | 4.5 | 2.7 | 33.2 | 353 | |
| 120 | 4.5 | 2.8 | 34.8 | 409 | |
| 150 | 4.5 | 2.9 | 36.5 | 465 | |
| 185 | 4.5 | 3.0 | 38.5 | 532 | |
| 240 | 4.5 | 3.1 | 41.4 | 633 | |
| 300 | 4.5 | 3.3 | 44.2 | 722 |
| Rated voltage | Conductor
cross-sectional area mm² |
Insulation nominal
thickness mm |
Sheath nominal
thickness mm |
Outer diameter
of the cable mm |
Environmental
temperature Current carrying capacity at 30℃ A |
| 12/20 kV | 35 | 5.5 | 2.5 | 30.1 | 196 |
| 50 | 5.5 | 2.6 | 31.5 | 235 | |
| 70 | 5.5 | 2.7 | 33.4 | 291 | |
| 95 | 5.5 | 2.8 | 35.4 | 358 | |
| 120 | 5.5 | 2.9 | 37.0 | 414 | |
| 150 | 5.5 | 3.0 | 38.7 | 470 | |
| 185 | 5.5 | 3.1 | 40.7 | 538 | |
| 240 | 5.5 | 3.3 | 43.8 | 633 | |
| 300 | 5.5 | 3.4 | 46.4 | 728 | |
| 18/30 kV | 50 | 8.0 | 3.0 | 38.1 | 241 |
| 70 | 8.0 | 3.1 | 40.0 | 302 | |
| 95 | 8.0 | 3.2 | 42.0 | 370 | |
| 120 | 8.0 | 3.3 | 43.6 | 426 | |
| 150 | 8.0 | 3.4 | 45.3 | 482 | |
| 185 | 8.0 | 3.5 | 47.3 | 549 | |
| 240 | 8.0 | 3.6 | 50.2 | 644 | |
| 300 | 8.0 | 3.8 | 53 | 739 | |
| 21/35 kV | 50 | 9.3 | 3.1 | 40.9 | 241 |
| 70 | 9.3 | 3.2 | 42.8 | 302 | |
| 95 | 9.3 | 3.4 | 45.0 | 370 | |
| 120 | 9.3 | 3.5 | 46.6 | 426 | |
| 150 | 9.3 | 3.5 | 48.1 | 482 | |
| 185 | 9.3 | 3.7 | 50.3 | 549 | |
| 240 | 9.3 | 3.8 | 53.2 | 644 | |
| 300 | 9.3 | 3.9 | 55.8 | 739 | |
| 26/35 kV | 50 | 10.5 | 3.3 | 43.7 | 241 |
| 70 | 10.5 | 3.4 | 45.6 | 302 | |
| 95 | 10.5 | 3.5 | 47.6 | 370 | |
| 120 | 10.5 | 3.6 | 49.2 | 426 | |
| 150 | 10.5 | 3.7 | 50.9 | 482 | |
| 185 | 10.5 | 3.8 | 52.9 | 549 | |
| 240 | 10.5 | 4.0 | 56.0 | 644 | |
| 300 | 10.5 | 4.1 | 58.6 | 739 |

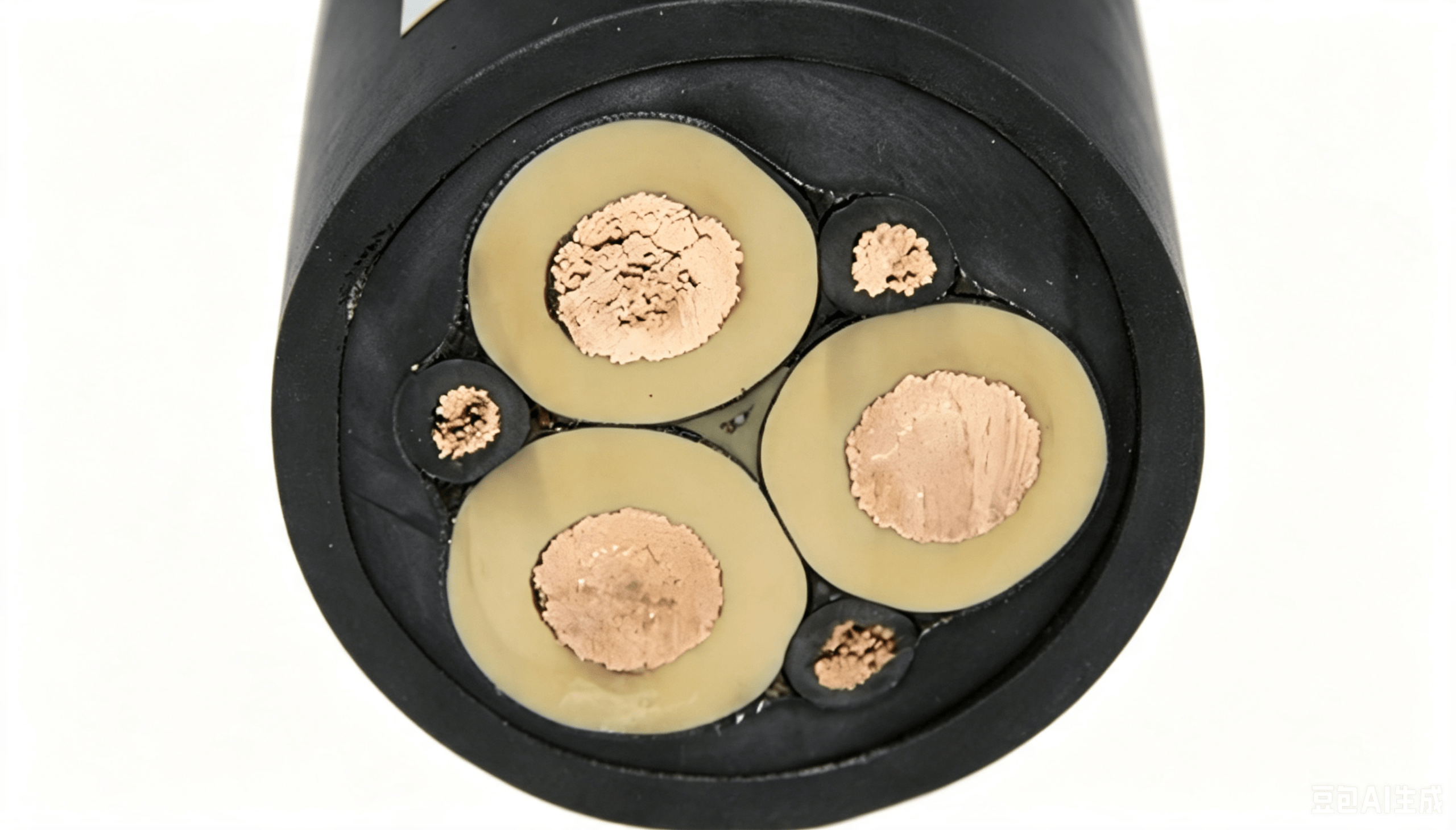

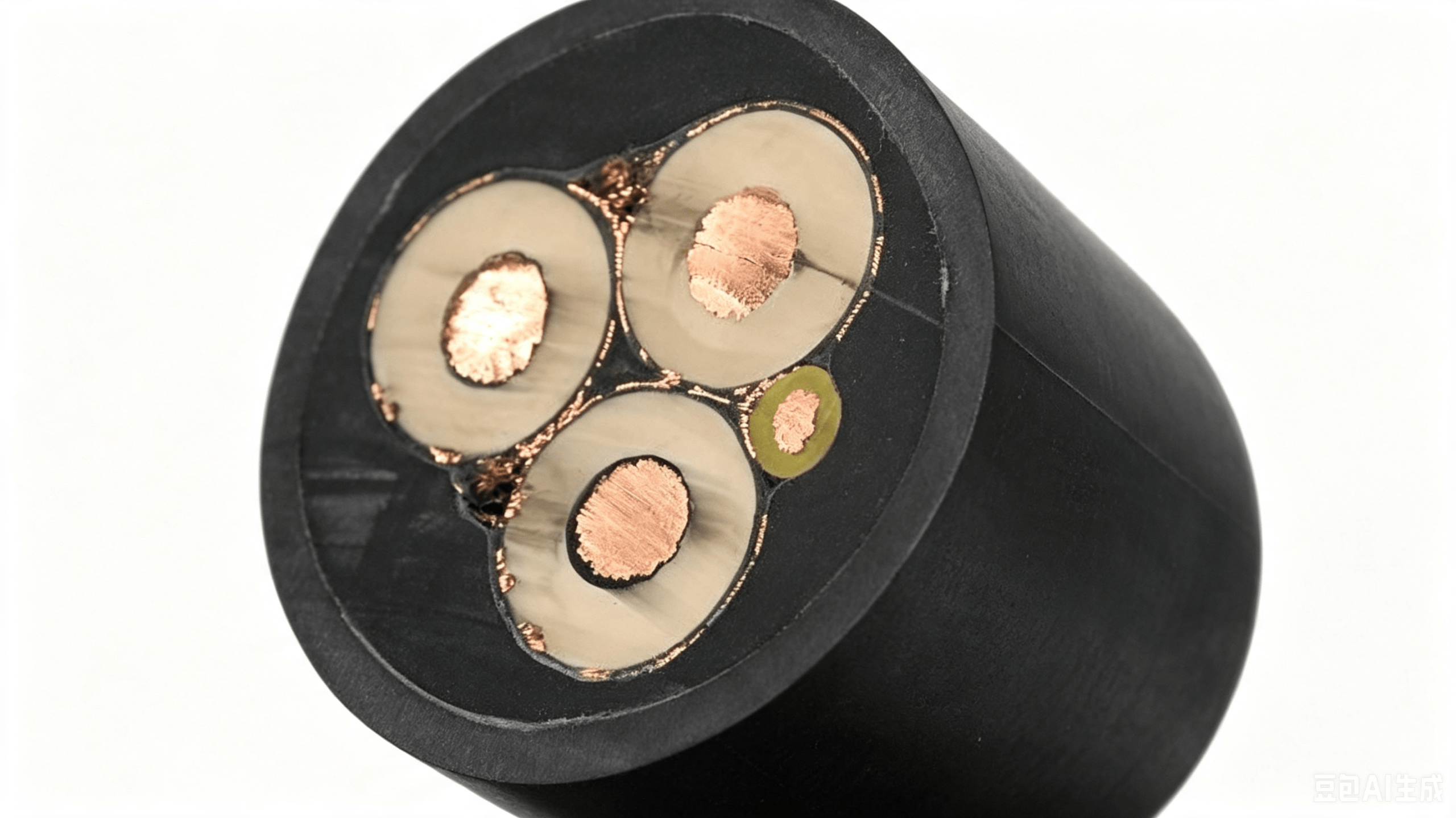

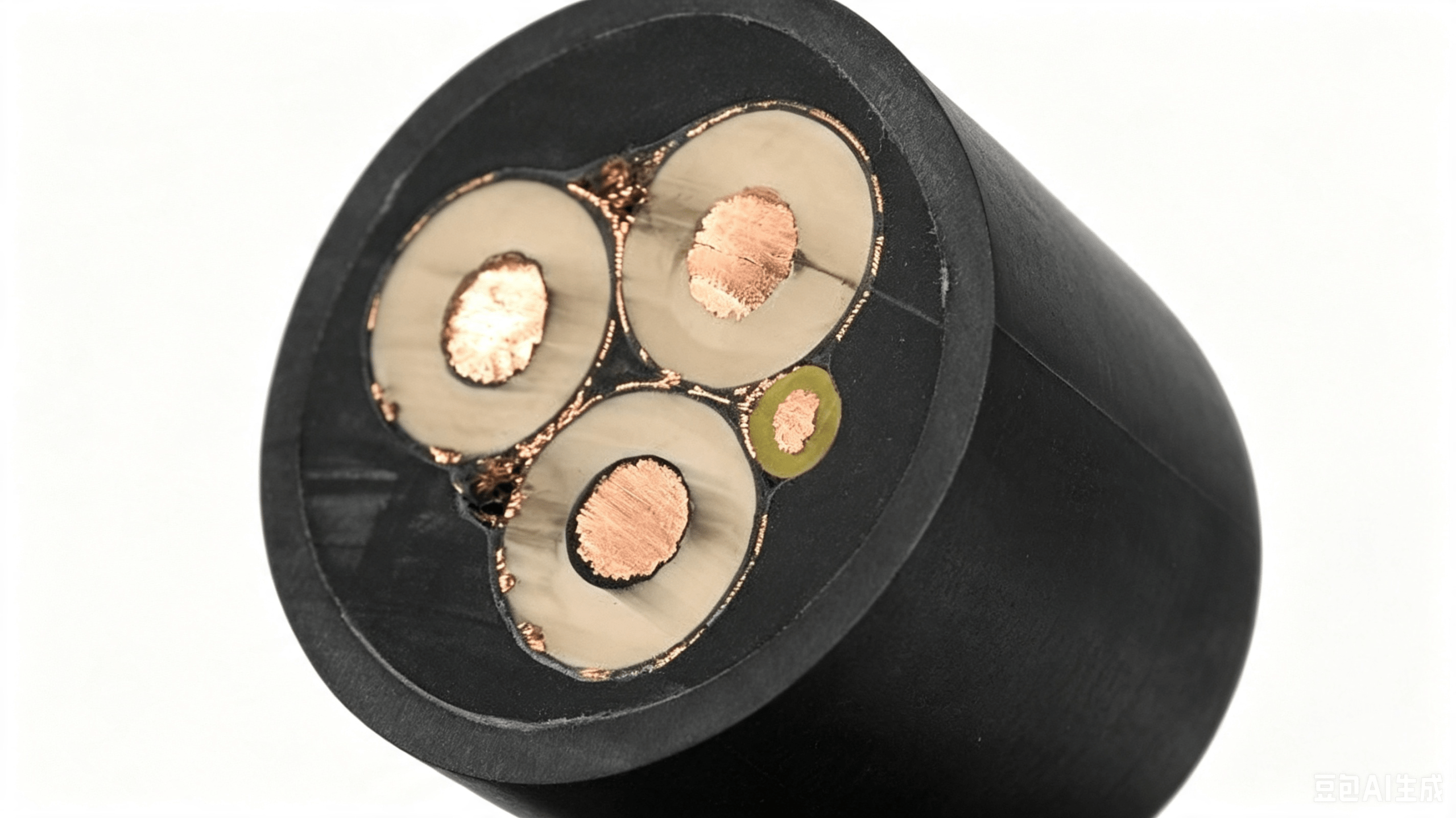

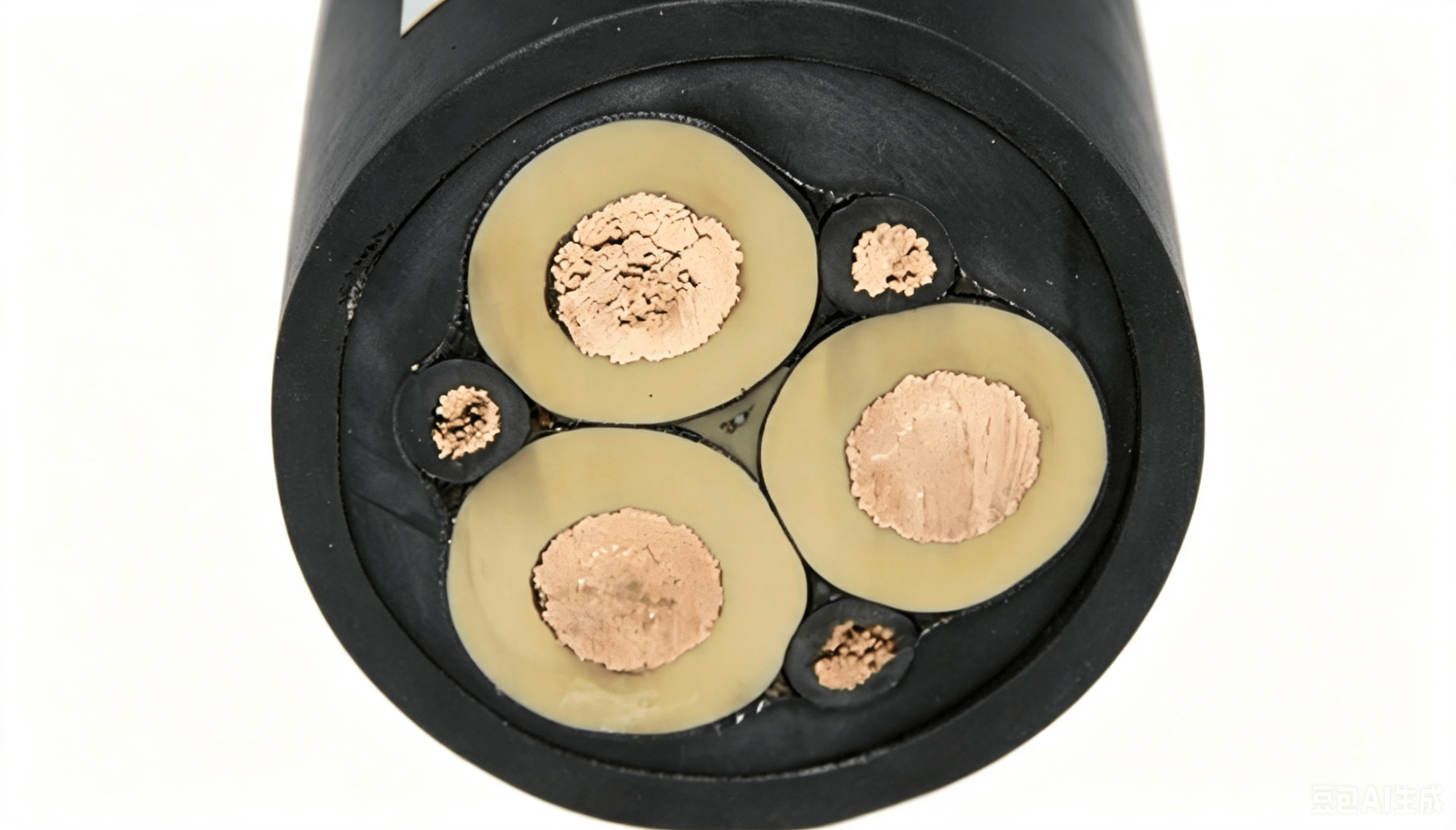

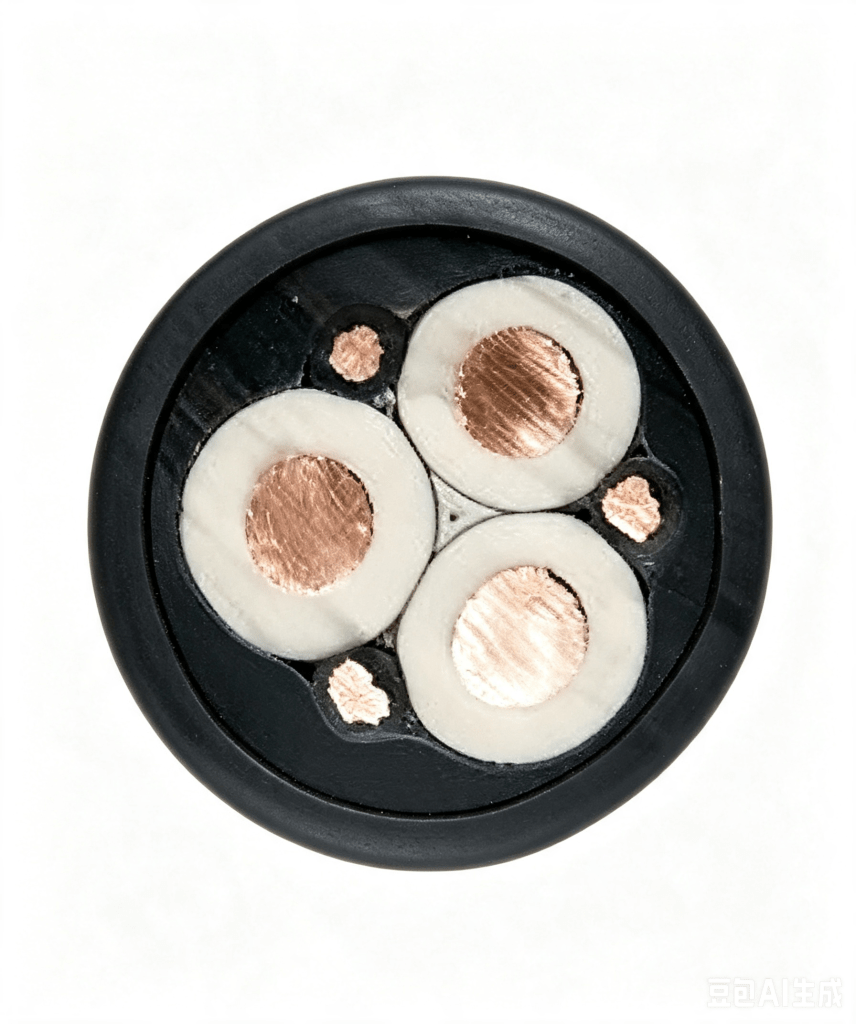

Table 2:Three-core cable parameters
| Rated voltage | Conductor
cross-sectional area mm² |
Insulation nominal
thickness mm |
Sheath nominal
thickness mm |
Outer diameter
of the cable mm |
Environmental
temperature Current carrying capacity at 30℃ A |
| 3.6/6 kV | 3×25+3×10/3 | 3.0 | 3.2 | 43.7 | 134 |
| 3×35+3×10/3 | 3.0 | 3.4 | 46.8 | 162 | |
| 3×50+3×16/3 | 3.0 | 3.6 | 49.7 | 196 | |
| 3×70+3×16/3 | 3.0 | 3.8 | 53.7 | 241 | |
| 3×95+3×16/3 | 3.0 | 4.0 | 57.9 | 297 | |
| 3×120+3×25/3 | 3.0 | 4.2 | 61.2 | 342 | |
| 3×150+3×25/3 | 3.0 | 4.4 | 64.7 | 386 | |
| 3×185+3×25/3 | 3.0 | 4.7 | 69.1 | 448 | |
| 3×240+3×35/3 | 3.0 | 5.0 | 75.7 | 526 | |
| 3×300+3×35/3 | 3.0 | 5.4 | 82.4 | 599 | |
| 3×25+3×6 | 3.0 | 3.2 | 42.2 | 134 | |
| 3×35+3×6 | 3.0 | 3.4 | 45.3 | 162 | |
| 3×50+3×10 | 3.0 | 3.6 | 48.2 | 196 | |
| 3×70+3×10 | 3.0 | 3.8 | 52.2 | 241 | |
| 3×95+3×10 | 3.0 | 4.0 | 56.4 | 297 | |
| 3×120+3×16 | 3.0 | 4.2 | 59.7 | 342 | |
| 3×150+3×16 | 3.0 | 4.4 | 63.2 | 386 | |
| 3×185+3×16 | 3.0 | 4.7 | 67.6 | 448 | |
| 3×240+3×25 | 3.0 | 5.0 | 74.2 | 526 | |
| 3×300+3×25 | 3.0 | 5.4 | 80.9 | 599 | |
| 6/10 kV | 3×25+3×10/3 | 3.4 | 3.5 | 48.1 | 134 |
| 3×35+3×10/3 | 3.4 | 3.6 | 51.0 | 162 | |
| 3×50+3×16/3 | 3.4 | 3.8 | 53.9 | 196 | |
| 3×70+3×16/3 | 3.4 | 4.1 | 58.1 | 241 | |
| 3×95+3×16/3 | 3.4 | 4.3 | 62.2 | 297 | |
| 3×120+3×25/3 | 3.4 | 4.5 | 65.5 | 342 | |
| 3×150+3×25/3 | 3.4 | 4.7 | 69.1 | 386 | |
| 3×185+3×25/3 | 3.4 | 4.9 | 73.2 | 448 | |
| 3×240+3×35/3 | 3.4 | 5.3 | 79.7 | 526 | |
| 3×300+3×35/3 | 3.4 | 5.6 | 85.3 | 599 | |
| 3×25+3×6 | 3.4 | 3.5 | 46.6 | 134 | |
| 3×35+3×6 | 3.4 | 3.6 | 49.5 | 162 | |
| 3×50+3×10 | 3.4 | 3.8 | 52.4 | 196 | |
| 3×70+3×10 | 3.4 | 4.1 | 56.6 | 241 |
| Rated voltage | Conductor
cross-sectional area mm² |
Insulation nominal
thickness mm |
Sheath nominal
thickness mm |
Outer diameter
of the cable mm |
Environmental
temperature Current carrying capacity at 30℃ A |
| 6/10 kV | 3×95+3×10 | 3.4 | 4.3 | 60.7 | 297 |
| 3×120+3×16 | 3.4 | 4.5 | 64.0 | 342 | |
| 3×150+3×16 | 3.4 | 4.7 | 67.6 | 386 | |
| 3×185+3×16 | 3.4 | 4.9 | 71.7 | 448 | |
| 3×240+3×25 | 3.4 | 5.3 | 78.2 | 526 | |
| 3×300+3×25 | 3.4 | 5.6 | 83.8 | 599 | |
| 8.7/15 kV | 3×25+3×10/3 | 4.5 | 3.8 | 53.3 | 134 |
| 3×35+3×10/3 | 4.5 | 4.0 | 56.4 | 162 | |
| 3×50+3×16/3 | 4.5 | 4.2 | 59.3 | 196 | |
| 3×70+3×16/3 | 4.5 | 4.4 | 63.3 | 246 | |
| 3×95+3×16/3 | 4.5 | 4.6 | 67.4 | 297 | |
| 3×120+3×25/3 | 4.5 | 4.8 | 70.7 | 342 | |
| 3×150+3×25/3 | 4.5 | 5.1 | 74.5 | 392 | |
| 3×185+3×25/3 | 4.5 | 5.3 | 78.6 | 442 | |
| 3×240+3×35/3 | 4.5 | 5.6 | 84.9 | 526 | |
| 3×300+3×35/3 | 4.5 | 5.9 | 90.5 | 599 | |
| 3×25+3×6 | 4.5 | 3.8 | 51.8 | 134 | |
| 3×35+3×6 | 4.5 | 4.0 | 54.9 | 162 | |
| 3×50+3×10 | 4.5 | 4.2 | 57.8 | 196 | |
| 3×70+3×10 | 4.5 | 4.4 | 61.8 | 246 | |
| 3×95+3×10 | 4.5 | 4.6 | 65.9 | 297 | |
| 3×120+3×16 | 4.5 | 4.8 | 69.2 | 342 | |
| 3×150+3×16 | 4.5 | 5.1 | 73.0 | 392 | |
| 3×185+3×16 | 4.5 | 5.3 | 77.1 | 442 | |
| 3×240+3×25 | 4.5 | 5.6 | 83.4 | 526 | |
| 3×300+3×25 | 4.5 | 5.9 | 89.0 | 599 | |
| 12/20 kV | 3×35+3×10/3 | 5.5 | 4.3 | 61.2 | 168 |
| 3×50+3×16/3 | 5.5 | 4.5 | 64.1 | 196 | |
| 3×70+3×16/3 | 5.5 | 4.7 | 68.0 | 246 | |
| 3×95+3×16/3 | 5.5 | 4.9 | 72.2 | 297 | |
| 3×120+3×25/3 | 5.5 | 5.1 | 75.5 | 342 | |
| 3×150+3×25/3 | 5.5 | 5.4 | 79.3 | 392 | |
| 3×185+3×25/3 | 5.5 | 5.6 | 83.4 | 442 | |
| 3×240+3×35/3 | 5.5 | 5.9 | 89.7 | 521 |
| Rated voltage | Conductor
cross-sectional area mm² |
Insulation nominal thickness
mm |
Sheath nominal
thickness mm |
Outer diameter
of the cable mm |
Environmental
temperature Current carrying capacity at 30℃ A |
| 12/20 kV | 3×300+3×35/3 | 5.5 | 6.2 | 95.3 | 594 |
| 3×35+3×6 | 5.5 | 4.3 | 59.7 | 168 | |
| 3×50+3×10 | 5.5 | 4.5 | 62.6 | 196 | |
| 3×70+3×10 | 5.5 | 4.7 | 66.5 | 246 | |
| 3×95+3×10 | 5.5 | 4.9 | 70.7 | 297 | |
| 3×120+3×16 | 5.5 | 5.1 | 74.0 | 342 | |
| 3×150+3×16 | 5.5 | 5.4 | 77.8 | 392 | |
| 3×185+3×16 | 5.5 | 5.6 | 81.9 | 442 | |
| 3×240+3×25 | 5.5 | 5.9 | 88.2 | 521 | |
| 3×300+3×25 | 5.5 | 6.2 | 93.8 | 594 | |
| 18/30 kV | 3×50+3×16/3 | 8.0 | 5.2 | 77.6 | 202 |
| 3×70+3×16/3 | 8.0 | 5.4 | 81.6 | 246 | |
| 3×95+3×16/3 | 8.0 | 5.7 | 85.9 | 297 | |
| 3×120+3×25/3 | 8.0 | 5.9 | 89.2 | 342 | |
| 3×150+3×25/3 | 8.0 | 6.1 | 92.8 | 386 | |
| 3×185+3×25/3 | 8.0 | 6.3 | 96.9 | 437 | |
| 3×240+3×35/3 | 8.0 | 6.7 | 103.4 | 510 | |
| 3×300+3×35/3 | 8.0 | 7.0 | 109.0 | 588 | |
| 3×50+3×10 | 8.0 | 5.2 | 76.1 | 202 | |
| 3×70+3×10 | 8.0 | 5.4 | 80.1 | 246 | |
| 3×95+3×10 | 8.0 | 5.7 | 84.4 | 297 | |
| 3×120+3×16 | 8.0 | 5.9 | 87.7 | 342 | |
| 3×150+3×16 | 8.0 | 6.1 | 91.3 | 386 | |
| 3×185+3×16 | 8.0 | 6.3 | 95.4 | 437 | |
| 3×240+3×25 | 8.0 | 6.7 | 101.9 | 510 | |
| 3×300+3×25 | 8.0 | 7.0 | 107.5 | 588 | |
| 21/35 kV | 3×50+3×16/3 | 9.3 | 5.6 | 83.8 | 202 |
| 3×70+3×16/3 | 9.3 | 5.8 | 87.8 | 246 | |
| 3×95+3×16/3 | 9.3 | 6.1 | 92.1 | 297 | |
| 3×120+3×25/3 | 9.3 | 6.3 | 95.5 | 342 | |
| 3×150+3×25/3 | 9.3 | 6.5 | 99.0 | 386 | |
| 3×185+3×25/3 | 9.3 | 6.7 | 103.2 | 437 | |
| 3×240+3×35/3 | 9.3 | 7.1 | 109.6 | 510 | |
| 3×300+3×35/3 | 9.3 | 7.4 | 115.2 | 588 |
| Rated voltage | Conductor
cross-sectional area mm² |
Insulation nominal
thickness mm |
Sheath nominal
thickness mm |
Outer diameter
of the cable mm |
Environmental
temperature Current carrying capacity at 30℃ A |
| 21/35 kV | 3×50+3×10 | 9.3 | 5.6 | 82.3 | 202 |
| 3×70+3×10 | 9.3 | 5.8 | 86.3 | 246 | |
| 3×95+3×10 | 9.3 | 6.1 | 90.6 | 297 | |
| 3×120+3×16 | 9.3 | 6.3 | 94.0 | 342 | |
| 3×150+3×16 | 9.3 | 6.5 | 97.5 | 386 | |
| 3×185+3×16 | 9.3 | 6.7 | 101.7 | 437 | |
| 3×240+3×25 | 9.3 | 7.1 | 108.1 | 510 | |
| 3×300+3×25 | 9.3 | 7.4 | 113.7 | 588 | |
| 26/35 kV | 3×50+3×16/3 | 10.5 | 6.0 | 89.6 | 202 |
| 3×70+3×16/3 | 10.5 | 6.2 | 93.6 | 246 | |
| 3×95+3×16/3 | 10.5 | 6.4 | 97.8 | 297 | |
| 3×120+3×25/3 | 10.5 | 6.7 | 101.3 | 342 | |
| 3×150+3×25/3 | 10.5 | 6.9 | 104.8 | 386 | |
| 3×185+3×25/3 | 10.5 | 7.1 | 109.0 | 437 | |
| 3×240+3×35/3 | 10.5 | 7.4 | 115.2 | 510 | |
| 3×300+3×35/3 | 10.5 | 7.7 | 120.8 | 588 | |
| 3×50+3×10 | 10.5 | 6.0 | 88.1 | 202 | |
| 3×70+3×10 | 10.5 | 6.2 | 92.1 | 246 | |
| 3×95+3×10 | 10.5 | 6.4 | 96.3 | 297 | |
| 3×120+3×16 | 10.5 | 6.7 | 99.8 | 342 | |
| 3×150+3×16 | 10.5 | 6.9 | 103.3 | 386 | |
| 3×185+3×16 | 10.5 | 7.1 | 107.5 | 437 | |
| 3×240+3×25 | 10.5 | 7.4 | 113.7 | 510 | |
| 3×300+3×25 | 10.5 | 7.7 | 119.3 | 588 |
